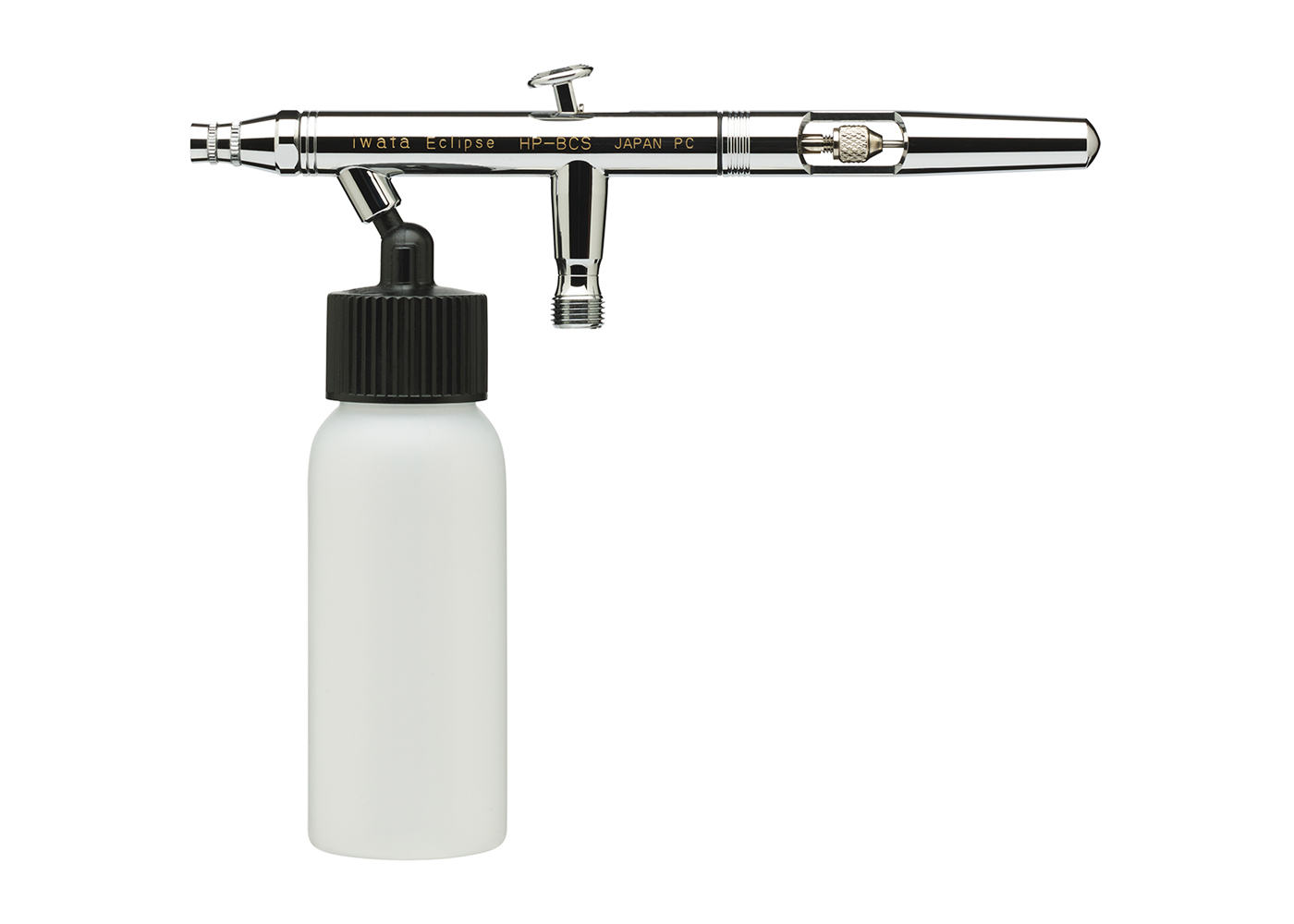

Iwata – Eclipse BCS Suction Feed Double Action Airbrush (0.5mm)

Description

High-Volume Versatility Meets Effortless Performance

The Iwata Eclipse BCS Siphon-Feed Dual-Action Airbrush exemplifies the Eclipse Series’ renowned “all-star versatility,” providing artists with a powerful tool built for high-volume work, quick color changes, and precision control.

This popular siphon-feed, dual-action airbrush includes a generous 2 oz (60 ml) bottle—ideal for projects that require larger volumes of spray medium. Thanks to its siphon-feed design, artists can swap between multiple pre-filled bottles (sold separately) in seconds, ensuring a seamless, uninterrupted workflow.

Engineered for high-flow performance, the Eclipse BCS atomizes a wide range of liquids with minimal need for thinning or reducing. It delivers a broad spray pattern—from fine lines to wide coverage up to 2 inches (50 mm)—all with consistent control.

Thoughtful design features include an exclusive compression-fit nozzle that simplifies cleaning and assembly, a quick-flush cutaway handle for fast needle access, and an easy reservoir emptying system. Built for durability, it also features an Iwata spring-steel needle that resists breakage and PTFE solvent-resistant needle packings for long-lasting performance.

Key Features:

• High-Volume Siphon-Feed: Includes a 2oz (60ml) bottle for larger projects, with the flexibility to use additional bottles for quick color changes.
• All-Star Versatility: Designed to atomize a wider variety of liquids (including heavier mediums) with less thinning, offering a broad range from fine line to 2-inch (50mm) wide spray.
• Dual-Action Control: Provides precise and intuitive command over both air and paint flow.
• Easy Clean & Assemble Nozzle: Features an exclusive compression-fit nozzle for straightforward cleaning and reassembly, ensuring consistent performance.
• Quick-Flush Cutaway Handle: Allows for easy access to the needle, enabling swift cleaning and paint reservoir emptying.
• Durable Construction: Built with a breakage-resistant Iwata spring-steel needle and solvent-resistant PTFE needle packings for long-term reliability.

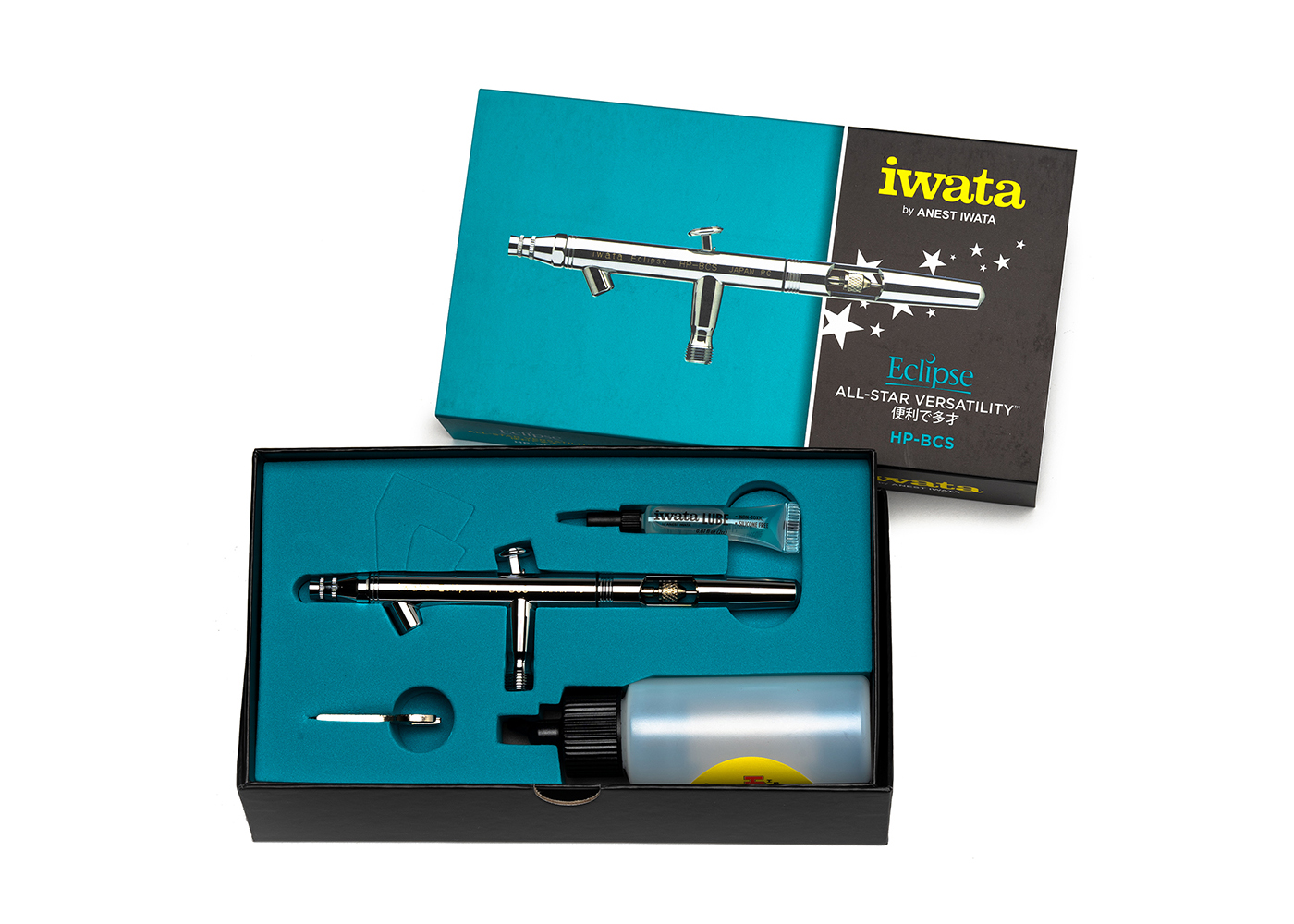

• Maintenance Tools Included: Comes with an Iwata head cap spanner and Iwata Lube.
• Optimal Working Pressure: Performs best between 35 – 55 psi (0.28 – 0.38 Mpa), adaptable to various paint mixes and applications.

Specifications:

• Series: Eclipse
• Spray Performance Category: All-Star Versatility
• Spray Scale: Fine to Wide – fine line to 2″ (0.5mm to 50mm)
• Optimal Working Pressure: 35 – 55 psi (0.28 – 0.38 Mpa)
• Head System: E5 – Needle, Nozzle, Nozzle Cap (0.5mm)
• Nozzle Type: Compression Fit
• Needle Packing: PTFE needle packing and solvent-resistant in all paint-bearing areas
• Feed Style: Siphon-feed
• Paint Capacity: 2.00oz (60ml) – Additional bottles are available to purchase separately.
• Action: Dual-action
• Mix Type: Internal-mix
• Handle Type: Cutaway handle

Ideal Applications:

The Iwata Eclipse BCS airbrush is highly recommended for:

• Spray Tanning
• Body Art
• Custom Automotive
• T-Shirt/Textile Painting
• Sign Painting
• Mural Painting
• Model Painting
• Ceramics
• Hobby and Craft
