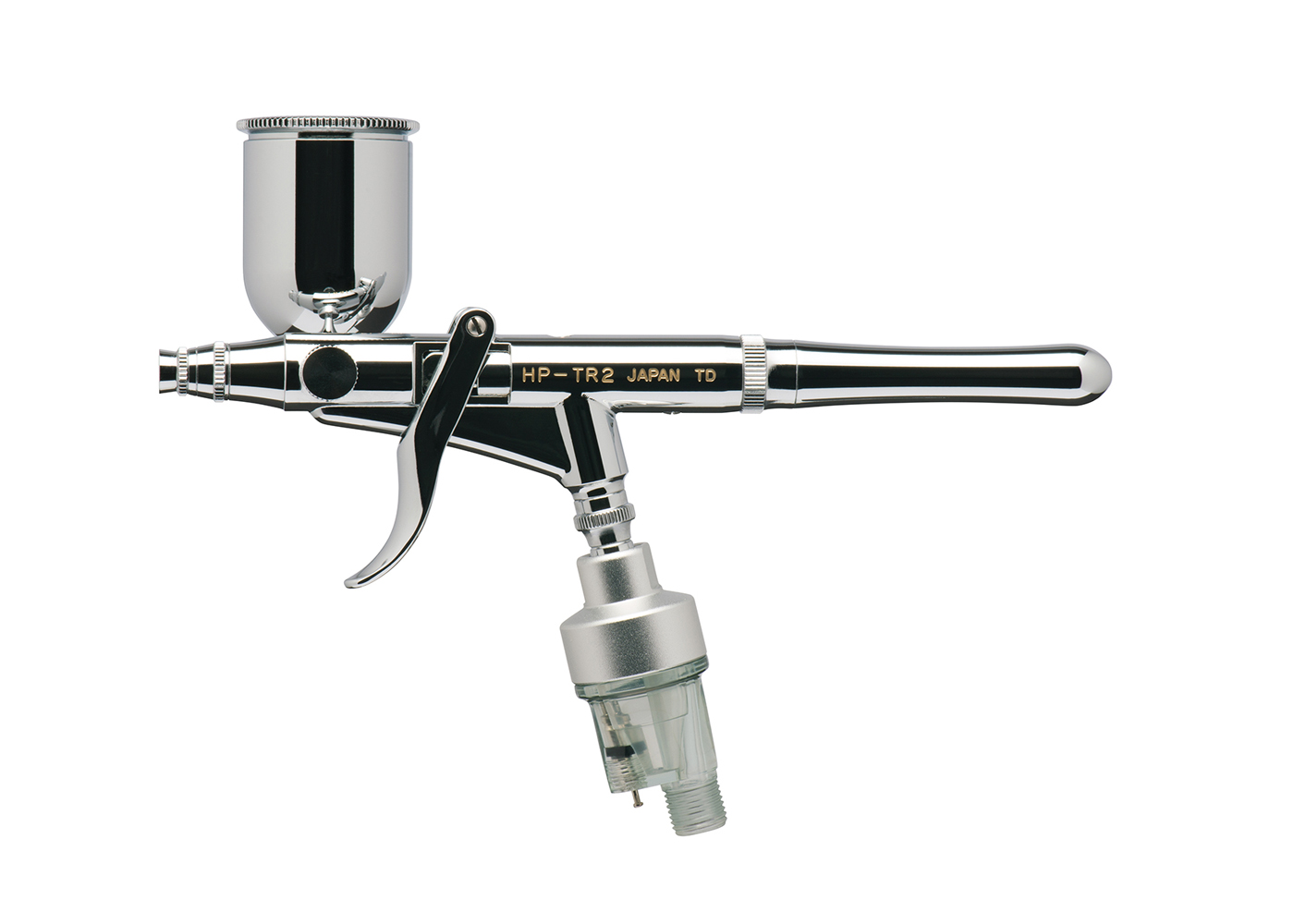

Iwata – Revolution TR2 Side-Feed Double Action Trigger Airbrush (0.5mm)

Description

Enhanced Comfort and Broad Coverage

The Iwata Revolution TR2 Side-Feed Dual-Action Trigger Airbrush is a standout in the Revolution Series, designed for those who want maximum control, comfort, and wide spray capability. With its ergonomic pistol-style trigger and exclusive comfort handle, the TR2 is built for effortless operation—even during extended use.

Key Features:

• Side-Feed Design: Provides flexibility in positioning and easy access to the 0.50oz (15ml) fluid cup, ideal for mixing.
• Dual-Action Pistol Trigger: Offers intuitive and precise control over both air and paint flow.
• Effortless Coverage: Delivers soft, smooth, and consistent paint application.
• Quality Atomisation at Low Pressures: Achieves excellent spray results even with smaller air compressors.
• Durable Components: Features a breakage-resistant spring-steel needle and solvent-resistant PTFE needle packings for longevity.
• Wide Spray Scale: Capable of spraying fine lines up to 1.5 inches (38mm) wide with its 0.5mm nozzle.

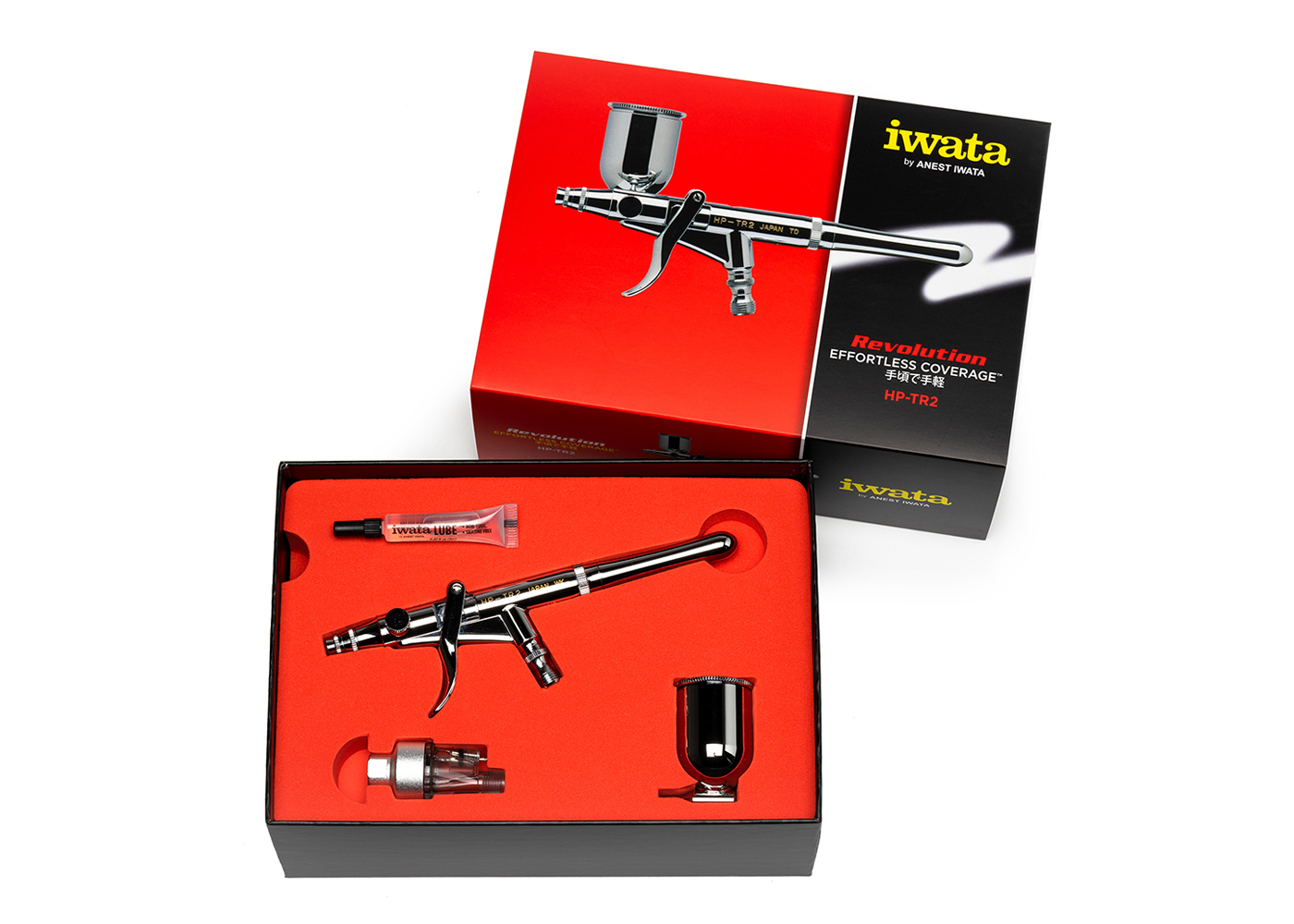

• Maintenance Accessories Included: Comes with an Iwata Nozzle Spanner and Iwata Lube.
• Integrated Air Filter: Includes an Iwata Pistol-grip Filter to ensure a clean, dry air supply, preventing moisture contamination.

Specifications:

• Series: Revolution
• Spray Performance Category: Effortless coverage and quality atomisation at low air pressures
• Spray Scale: Fine to Wide – Fine line to 1 1/2″ (0.5mm to 38mm)
• Optimal Working Pressure: 20 – 30 psi (0.14 – 0.21 Mpa)
• Head System: R5 – Needle, Needle Cap, Nozzle, Nozzle Cap (0.5mm)
• Nozzle Type: Threaded
• Feed Style: Side-feed
• Paint Capacity: 0.50oz (15.0ml) – additional Side-feed Bottles and Cups are available.
• Action: Dual-action
• Mix Type: Internal-mix
• Handle Type: Comfort

Ideal Applications:

The Iwata Revolution TR2 is an excellent choice for a wide array of applications, including:

• Custom Automotive
• Art & Graphics
• Mural Painting
• Model Painting
• Textiles
• Hobby and Craft
• Body Art
• Cosmetics
