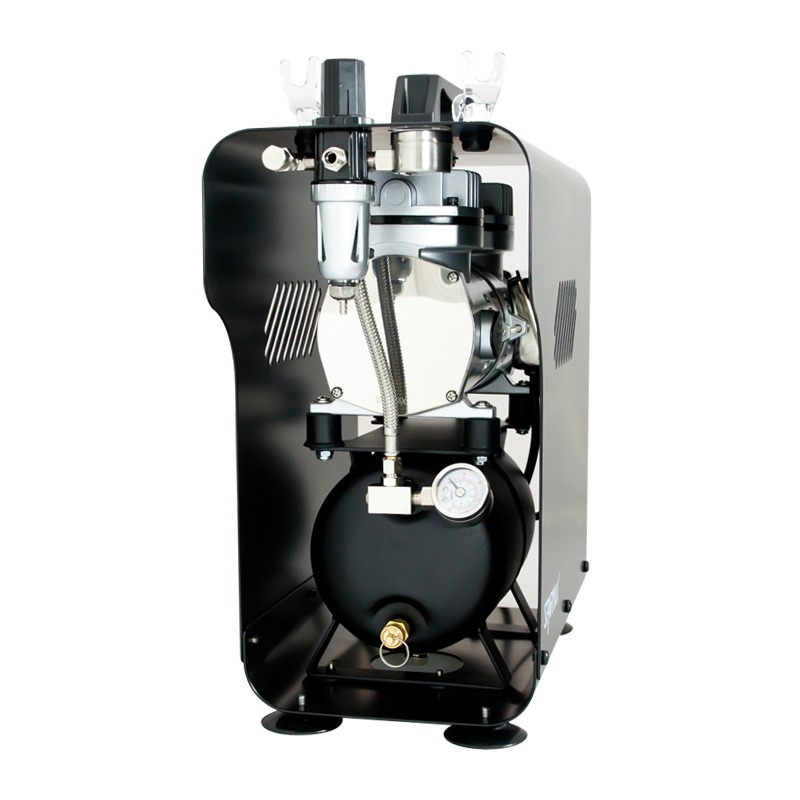

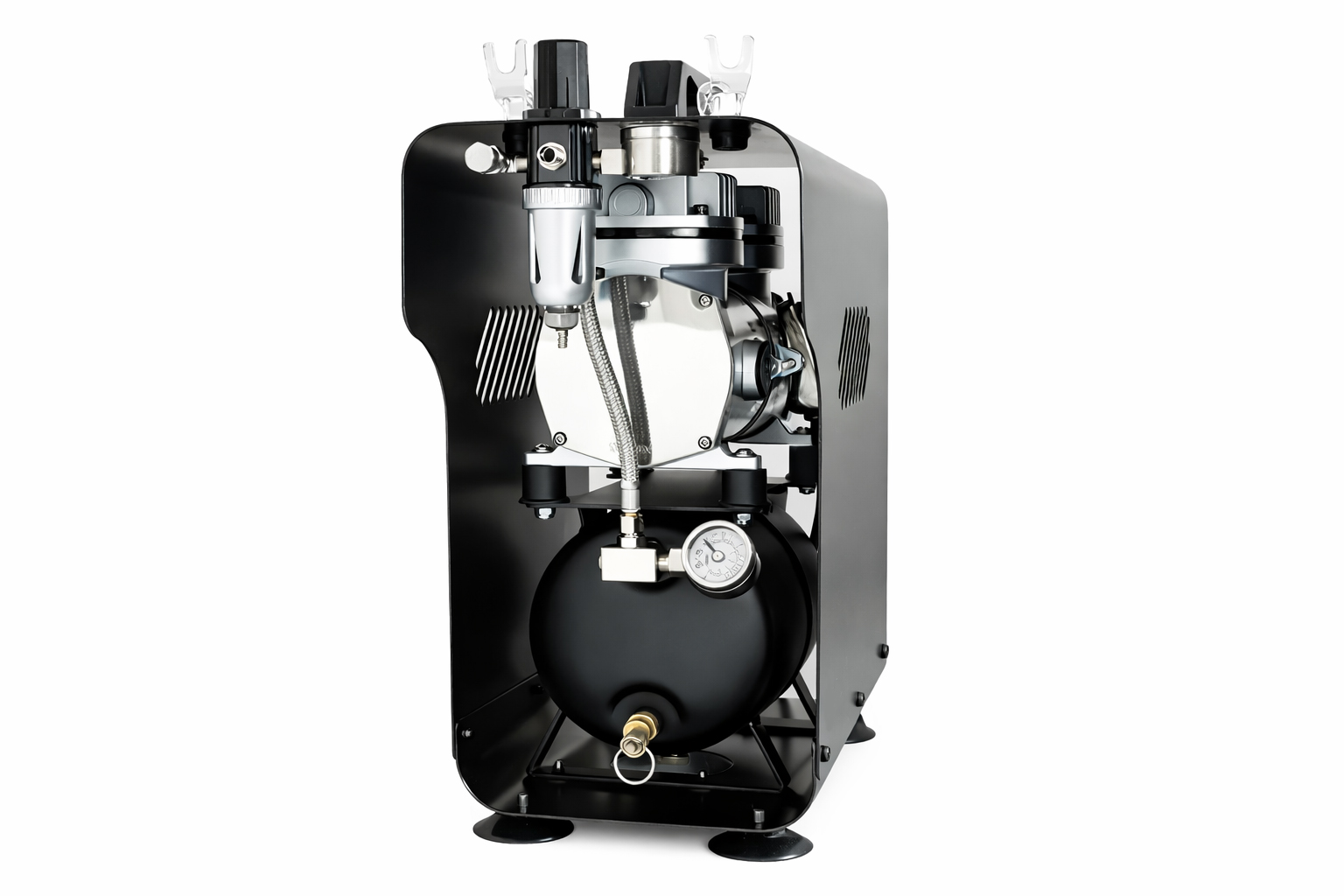

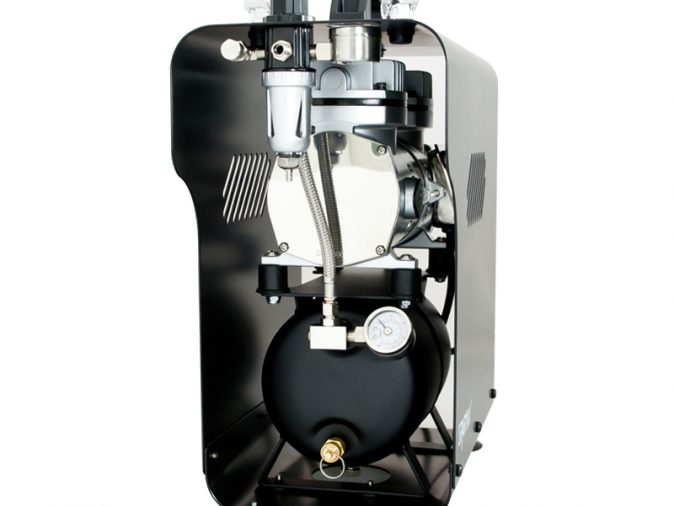

The Sparmax TC-620X is a twin piston 1/6HP zero maintenance unit with a working pressure of up to 60 psi.
This model has a 2.5 litre receiver tank that has its pressure maintained automatically by the compressor.
Once it has reached the maximum output pressure of 60 PSI it shuts off automatically. Only when the airbrush is triggered and the tank pressure falls below 40 PSI does it restart.

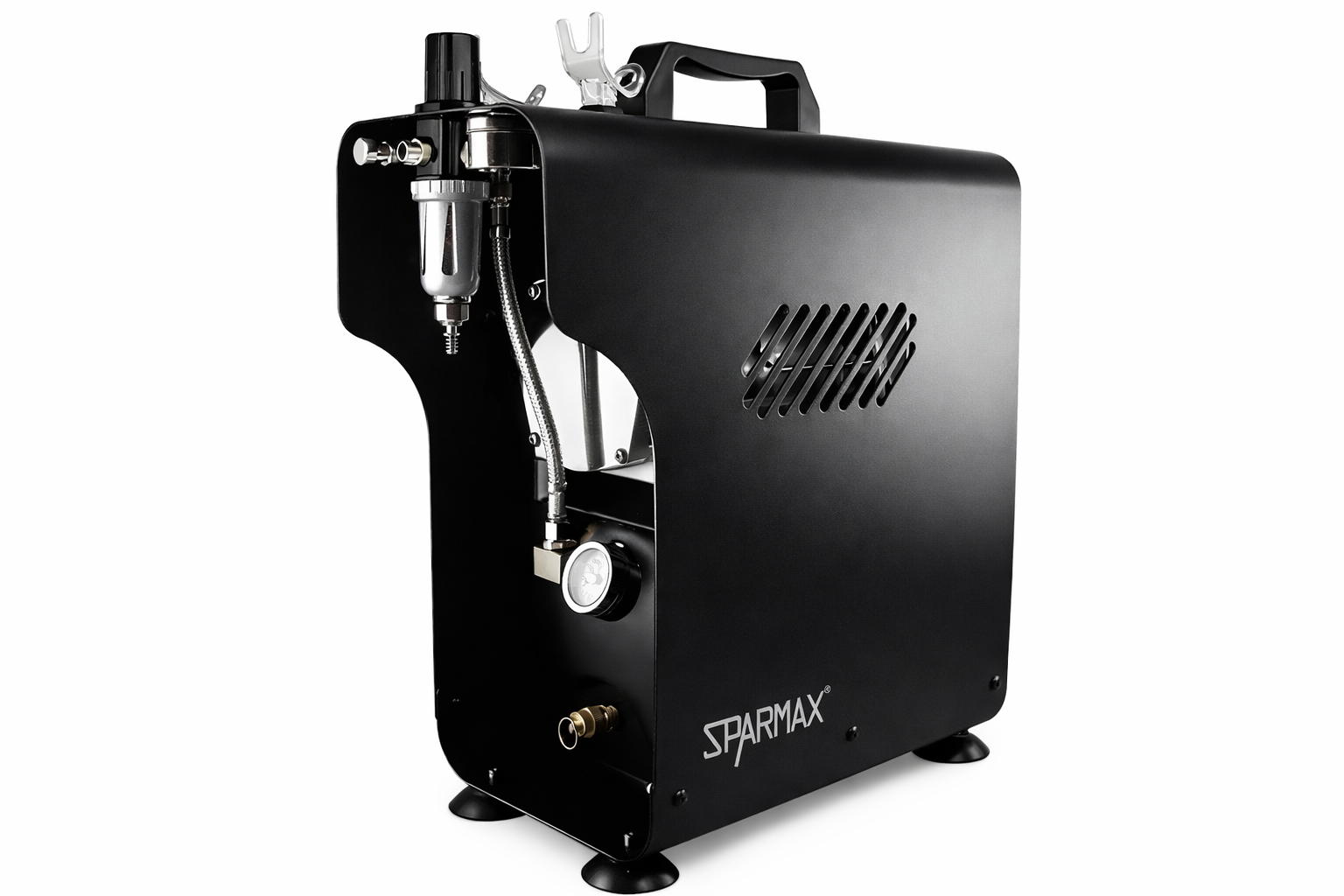

The TC-620X has a protective metal case with a integral filter regulator and pressure gauge and comes supplied with two three metre 1/8 BSP braided hoses.
The Sparmax 620X Compressor also comes supplied with three adaptors to connect Aztek, Badger and Paasche airbrushes to the 1/8 BSP braided hoses.
- Motor: 1/6 HP AC
- Automatic type with Pressure Auto On/Off Switch preset at 40 psi On/60 psi Off
- Outlet: Twin 1/8 BSP Male (9mm diameter)
- Airflow: 23~32 lpm
- Decibel Rating: 57-60 dB
- Weight: 10.4 KG
- Air tank: 2.5 Liters, With Gauge
- Size: L33x W18 x H34.5CM

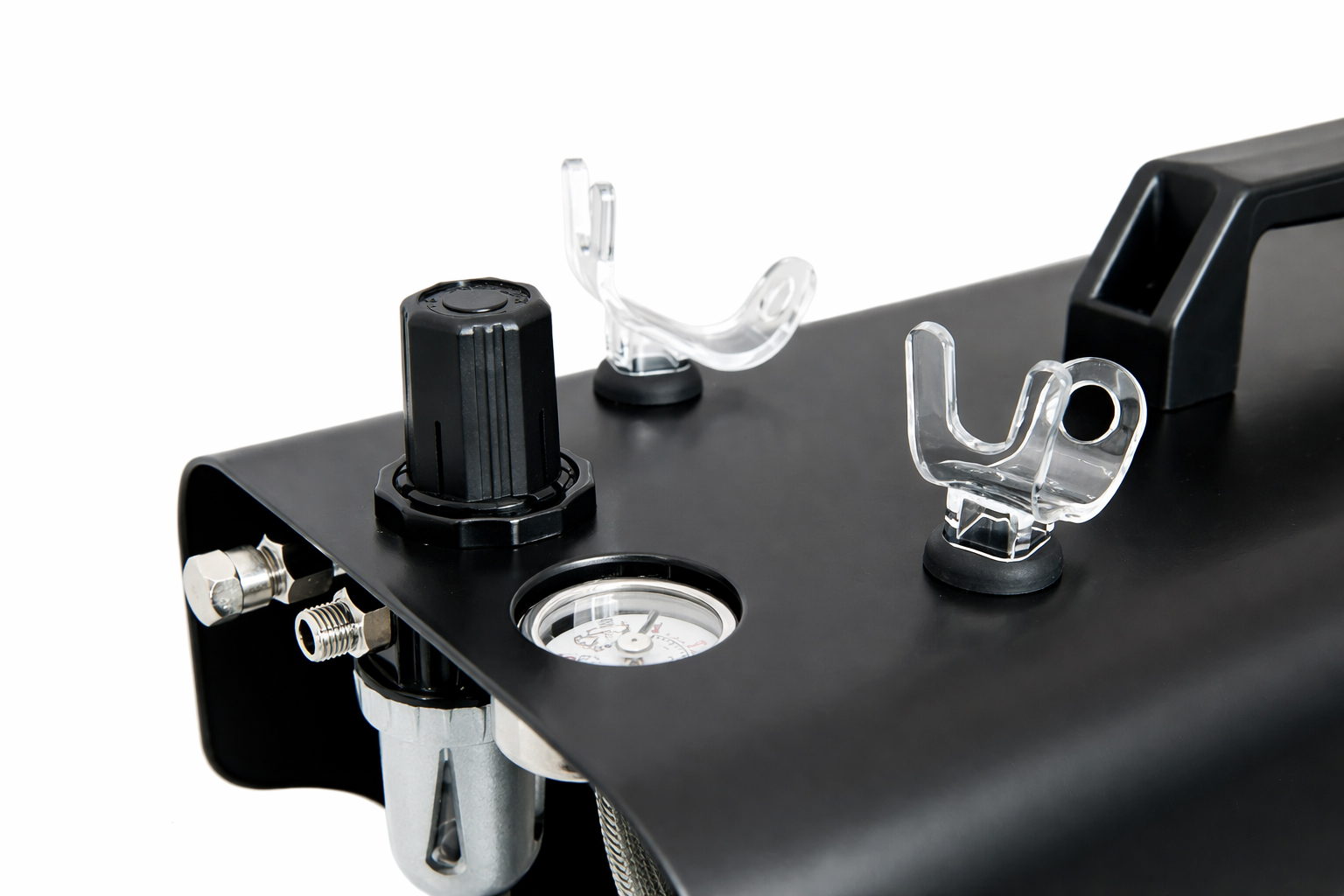

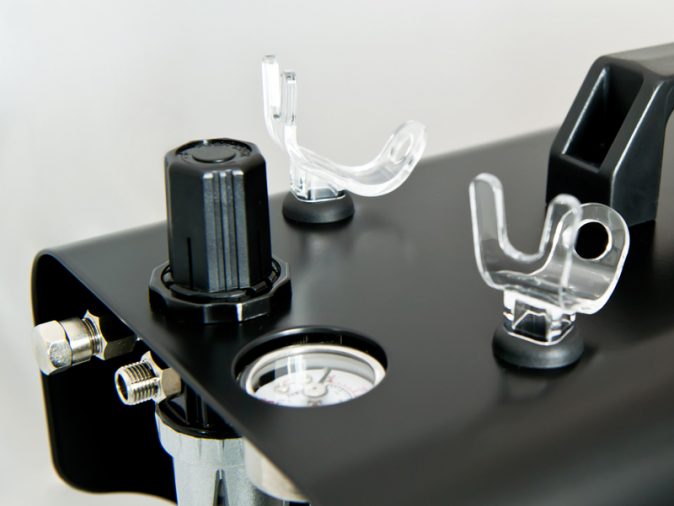

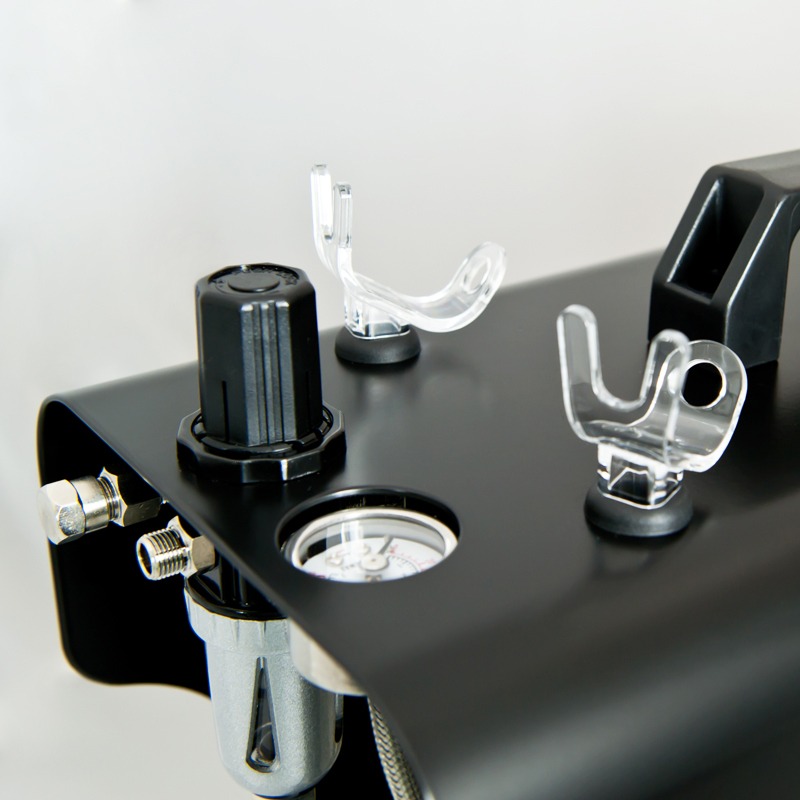

- Equipped with Pressure regulator/Moisture trap/Gauge set & case mounted airbrush holders
- Comes fitted with UK 3 Pin Plug
European customers can connect to EU mains by purchasing the following UK to EURO plug adaptor
To download the Sparmax TC-620X instructions click on the picture below
