Description
Total Control for Specialized Spray Patterns

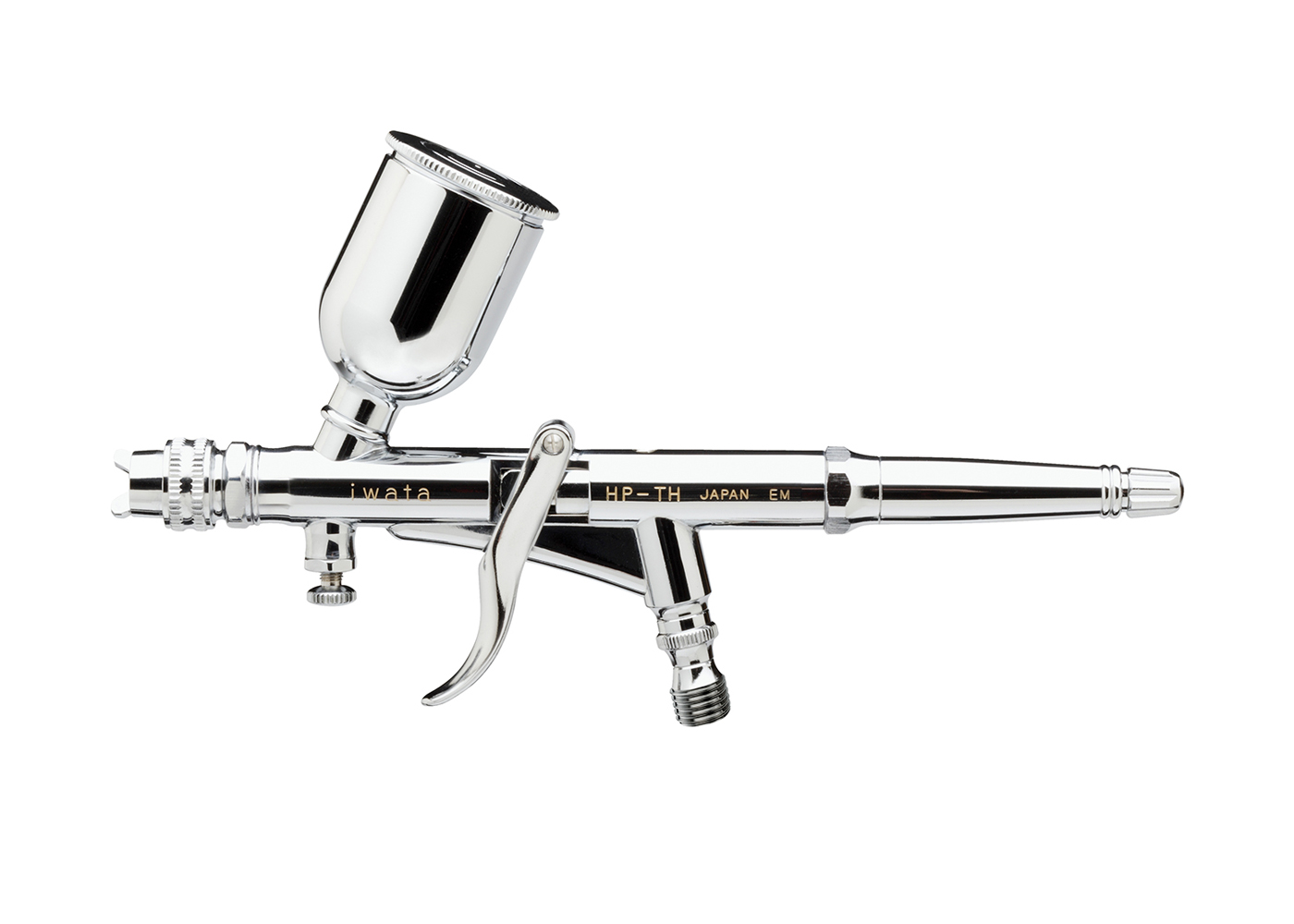

The Iwata Hi-Line HP-TH Gravity-Feed Dual-Action Trigger Airbrush is a high-performance tool offering total control over specialized spray patterns, blending unique capabilities with the precision and innovation of the Hi-Line Series.
The Iwata Hi-Line HP-TH is a versatile gravity-feed, dual-action trigger airbrush with unique spray capabilities designed for total control. Its standout feature is the Micro Air Control (MAC) Valve, which allows for incremental control of airflow directly at the nozzle. This enables precise adjustments for fine to large spray patterns and the creation of various controlled stipple effects. The HP-TH comes with both round-pattern and fan-pattern air caps, allowing you to cover areas quickly and evenly. It includes a generous, removable 0.50oz (15ml) fluid cup with lid, perfect for color mixing and easy cleanup. The quick-flush pre-set handle provides easy access to the needle for quick cleaning and lets you set the spray output to reduce finger fatigue and enhance control. Built for longevity, it features Iwata’s spring-steel needle and PTFE solvent-resistant needle packing.
Key Features:
- Total Control Performance: Offers precise and comprehensive control over specialized spray patterns.
- Micro Air Control (MAC) Valve: Enables incremental airflow control directly at the airbrush, perfect for fine adjustments and achieving stipple effects.
- Versatile Air Caps: Includes both round-pattern and fan-pattern air caps for quick, even coverage and diverse spray applications.
- Round Cap: Ideal for detailed work, offering a spray scale from 1/8″ to 2″ (3mm to 50mm).
- Fan Cap: Excellent for broader coverage, providing a spray scale from 1″ to 2.5″ (25mm to 63mm).
- Generous, Removable Gravity-Feed Cup: Features a 0.50oz (15ml) fluid cup with lid, suitable for color mixing and easy cleaning.
- Quick-Flush Pre-set Handle: Provides easy access to the needle for cleaning and allows setting the spray output to reduce fatigue and enhance control.
- Durable Construction: Built with a breakage-resistant Iwata spring-steel needle and PTFE solvent-resistant needle packing for long-term reliability.

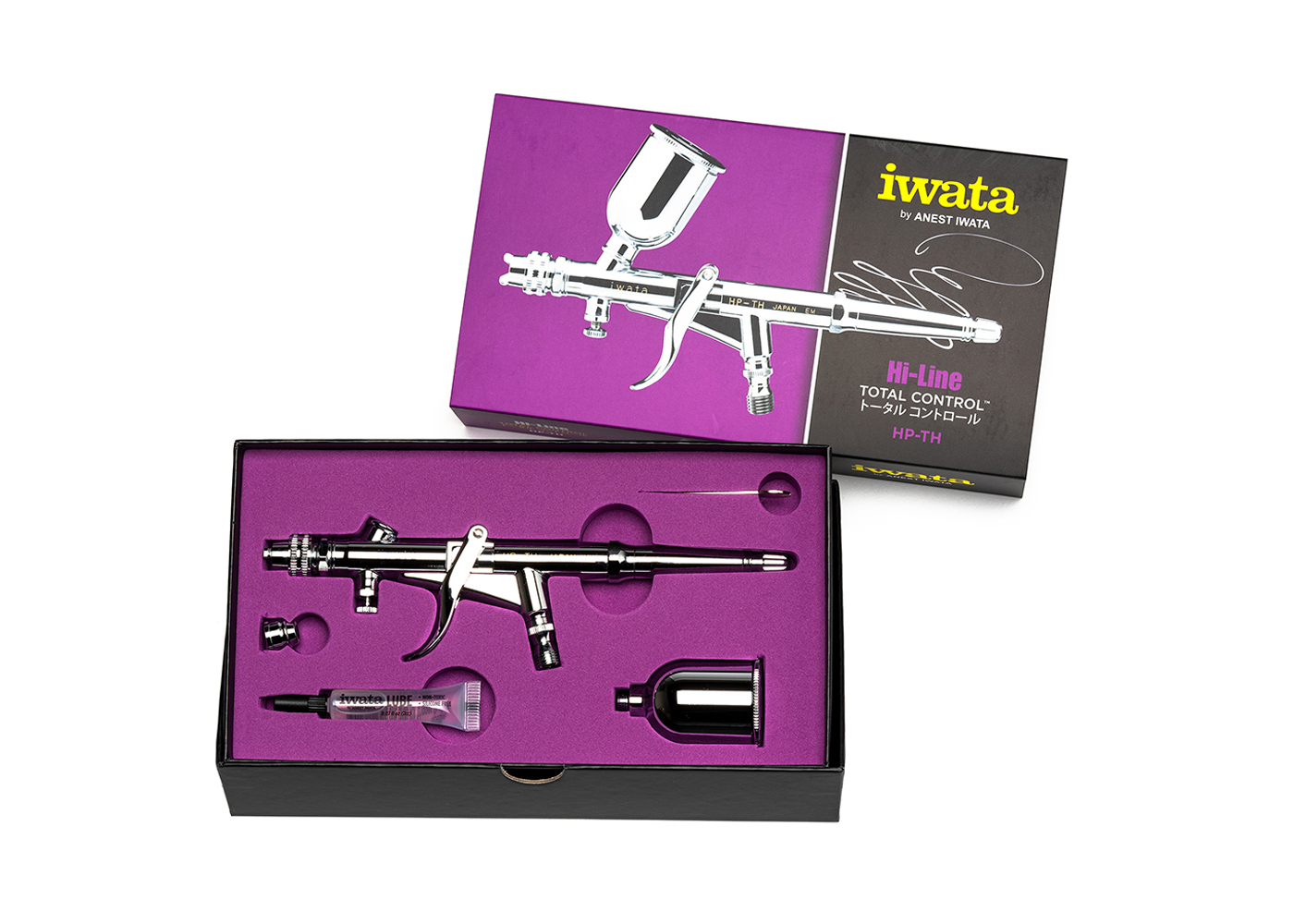

- Maintenance Tools Included: Comes with an Iwata Nozzle Spanner and Iwata Lube.
- Optimal Working Pressure: Adapts to different applications: 25 – 35 psi for the Round Cap and 30 – 40 psi for the Fan Cap.
Air Consumption Considerations
The HP-TH consumes more air when operating in the fan pattern compared to the standard round pattern. Many low to medium-powered airbrush compressors may be unable to provide adequate airflow for optimal performance in fan mode.
You can use the following air consumption figures to determine if your existing compressor will be suitable:
- 20psi – Round Pattern: 11.1 L/Min
- 30psi – Round Pattern: 14.6 L/Min
- 20psi – Fan Pattern: 19.1 L/Min
- 30psi – Fan Pattern: 25.2 L/Min
Your compressor’s airflow rating should be available from its manual or the manufacturer’s website. If the rating is provided in CFM (Cubic Feet per Minute), multiply the CFM rating by 28.3 to convert it to L/Min (Litres per Minute).
Specifications:
- Series: Hi-Line
- Spray Performance Category: Total Control
- Spray Scale: Round Cap 1/8″ to 2″ (3mm to 50mm), Fan Cap 1″ to 2.5″ (25mm to 63mm)
- Optimal Working Pressure: Round Cap 25 – 35 psi (0.17 – 0.24 Mpa); Fan Cap 30 – 40 psi (0.21 – 0.28 Mpa)
- Head System: H5 – Needle, Nozzle (0.5mm)
- Nozzle Type: Threaded
- Needle Packing: PTFE needle packing and solvent-resistant in all paint-bearing areas
- Feed Style: Gravity-feed
- Paint Capacity: 0.50oz (15ml)
- Action: Dual-action
- Mix Type: Internal-mix
- Handle Type: Pre-set handle
Ideal Applications:
The Iwata Hi-Line HP-TH Trigger Airbrush is highly recommended for:
- Custom Automotive Graphics
- Automotive Body Repair
- Mural Painting
- Sign Painting
- RC Models
- Railway Models
- Model Painting
